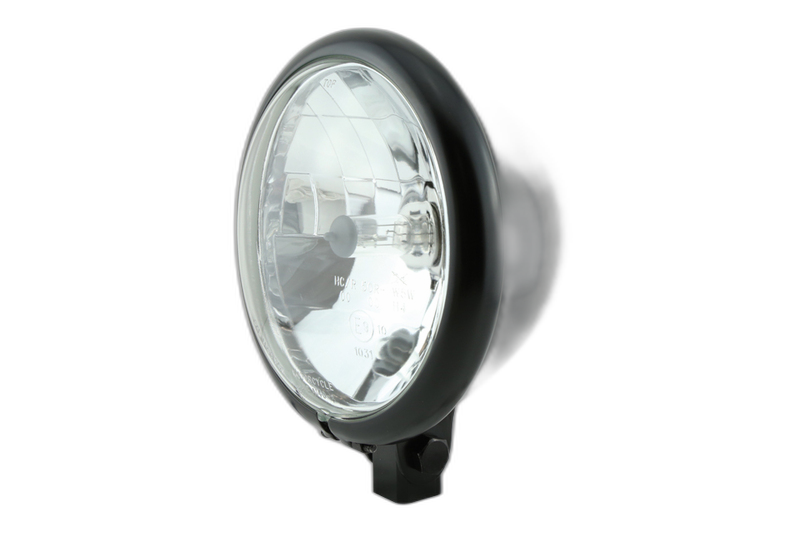

smart 5 3/4 inch Headlight Bates Style, matt black
HIGHSIDER smart 5 3/4 inch headlight Bates Style
The popular main headlight with its classic hemispherical design makes it the perfect part for all conversion projects. The tested headlight is also robust and easy to install.
Technical specifications:
- Metal housing
- Clear glass
- H4 insert with parking light
- H4 12V 60/55W
- Mounting point: bottom
Dimensions:
Diameter front: approx. 155 mm
Depth: 90 mm,…
Technical specs
Compatibility
→ Vehicle finder with model search coming soon.
Description
HIGHSIDER smart 5 3/4 inch headlight Bates Style
The popular main headlight with its classic hemispherical design makes it the perfect part for all conversion projects. The tested headlight is also robust and easy to install.
Technical specifications:
- Metal housing
- Clear glass
- H4 insert with parking light
- H4 12V 60/55W
- Mounting point: bottom
Dimensions:
Diameter front: approx. 155 mm
Depth: 90 mm, with ring approx. 92 mm
Blind hole diameter: 8.8 mm
Blind hole depth: 10 mm
Screw: 9.4 x 20 mm
Thread: 24G 3/16, 7/32
Height mounting block to ring: approx. 27 mm
Height mounting block: approx. 30 mm
Width/depth mounting block: approx. 22 mm
Height mounting with block, center/center: approx. 39 mm
Diameter A = 157 mm
Diameter GA = 135 mm
Diameter I = 145 mm
T = 75 mm
R = 20 mm
Scope of delivery: 1 piece
