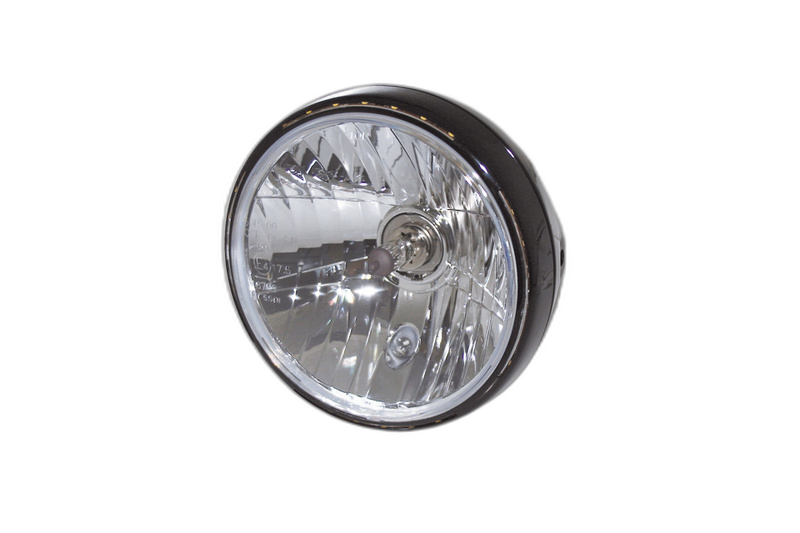

smart 7 inch headlight RENO 2, glossy black

HIGHSIDER smart RENO 2
7 inch main headlight with LED position light in the lamp ring. H4 prism reflector in a black or chrome metal housing with M8 side mounting. E-approved.

Headlight dimensions:
Housing diameter: 200 mm
Headlight insert diameter: 178 mm
Housing depth: 160 mm
Distance between mounting holes (center - center): 170 mm
Distance from mounting hole (center) to housing end: approx. 90 mm
Mounting: side with M8 threaded bolt

Technical data:
3-pin connector for H4 insert
green = ground (-)
white = low beam (+)
blue = high beam (+)
LED ring for front position light
brown = positive (+)
black = ground (-)

Scope of delivery: 1 piece

Spare parts:
Symmetrical insert: Art. No. 226-178
Replacement bulb H4 Art. No.:
209-101 Performance +50%
209-105 P43T
209-114 Duty / Highlife
209-121 Cobalt
209-122 Power White
