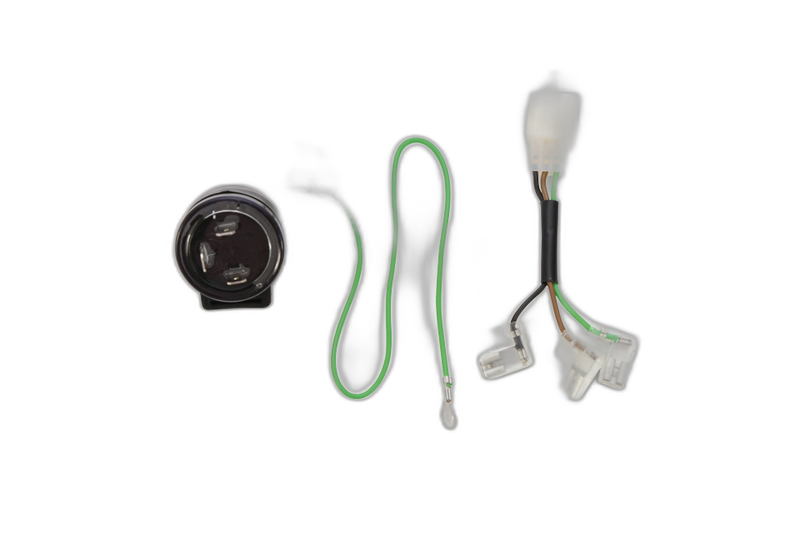

smart 3-Pin Universal Flasher Relay, 12V
HIGHSIDER smart 3-Pin Universal Flasher Relay
Universal flasher relay with adjustable flash frequency. This relay makes it possible to operate a turn signal combination of LED and incandescent bulbs. It also includes a hazard warning function.
Dimensions
Ø 37 mm
Height: 35 mm
Technical data and connections
Voltage: 12 V
Load capacity: min. 5 mA ~ max. 15 A
Consumers: min. 0.06 W ~ 180 W…
Technische Daten
Kompatibilität
→ Fahrzeug-Finder mit Modell-Suche kommt bald.
Beschreibung
HIGHSIDER smart 3-Pin Universal Flasher Relay
Universal flasher relay with adjustable flash frequency. This relay makes it possible to operate a turn signal combination of LED and incandescent bulbs. It also includes a hazard warning function.
Dimensions
Ø 37 mm
Height: 35 mm
Technical data and connections
Voltage: 12 V
Load capacity: min. 5 mA ~ max. 15 A
Consumers: min. 0.06 W ~ 180 W max.
49 B = Battery (12V +) input
31 G = Ground (-)
49a L = Light (to turn signal switch)
Attach the separate green cable to G (31) and to the vehicle ground point.
For vehicles with 3-pin connector and 2-pin assignment (49, 49a)
For vehicles with 3-pin connector and 3-pin assignment (49, 49a, 31), use the green cable on the adapter plug (please check if the assignment is correct).
Scope of delivery: 1 piece
Note: No function at 6V!
Excerpt from StVO (German Road Traffic Regulations): The flash frequency must be set to 1.5 Hz +/- 0.5 Hz (90 pulses +/- 30 pulses per minute).
