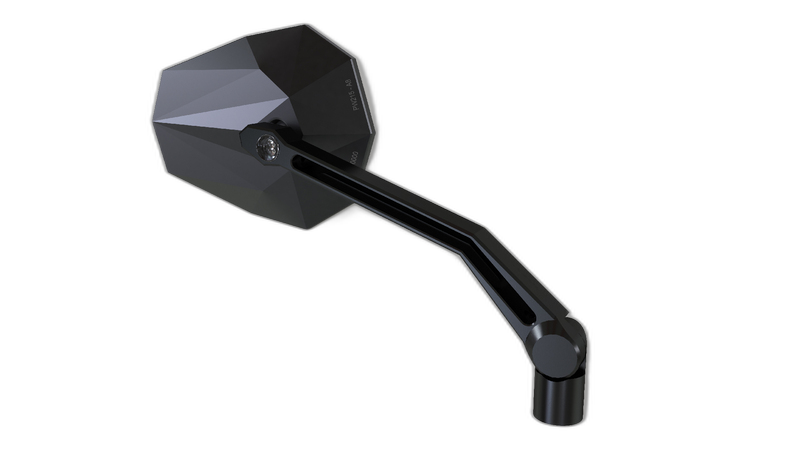

pro STEALTH-X2 bar end mirror with LED turn signal

HIGHSIDER pro STEALTH-X2 mirror with LED turn signal, E-approved

The characteristic Stealth design, known from military stealth technology, distinguishes this shapely and high-quality mirror. Combined with the matte black color, the mirror head made of high-quality plastic with its angular elements has a striking appearance.

Thanks to the use of lightweight materials, the HIGHSIDER pro STEALTH series belongs to the flyweight class. An adjustable joint provides additional adjustment options for the HIGHSIDER pro STEALTH-X2.

Character and overview - whether retro or modern. The HIGHSIDER mirror series are characterized by their distinctive design and aerodynamic function. That's foresight in perfection.

In this Stealth variant, an LED turn signal is integrated into the mirror arm. The installation of mirrors with LED turn signals must always be done in pairs. Make sure that the turn signals are oriented parallel to the vehicle and the ground in the direction of travel.

Technical data

Mirror head:

• Width: 119 mm
• Height: 90 mm

Overall mirror:

• Width: 175 mm
• Height: 170 mm

Stem:

• Length: 144 mm to the bend, from the bend 44 mm to the joint, then another 40 mm to the threaded bolt.
• Blind hole: M8 x 1.25 mm
• Adapter: M10 x 1.25 mm

Wiring:

• yellow cable = turn signal (+)
• black cable = ground (-)

Power consumption at 12.5 V:

• Turn signal: 1.35W

Scope of delivery: 1 pair
