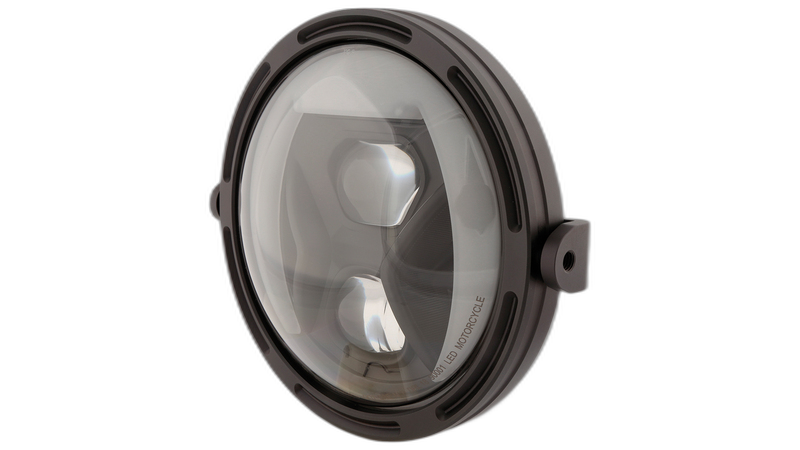

per 7 inch LED headlight FRAME-R1 TYPE 8, black, side mounted

HIGHSIDER pro LED Headlight FRAME-R1 TYPE 8, E-approved
- Installation WITHOUT housing, for a clear view. -

Every centimeter counts when it comes to placing the headlight as snugly as possible between the two fork tubes. REDUCED TO THE MAX was the premise for the development of the innovative FRAME headlight mount. The puristic aluminum ring makes it possible for the first time to mount various LED headlight inserts freestanding on the motorcycle. By deliberately omitting a headlight housing, an unbeatably tight mounting position is achieved, and better cooling of the LED unit is also attained.

On many motorcycles, the H4 or H7 bulb, which flickers more or less dimly, is illuminated. Seeing better usually also means being seen better, which is not unimportant when summer turns to autumn and in times when cars are increasingly equipped with bright daytime running lights. Whether for replacement for better visibility at night, better recognition during the day, or to give the motorcycle a more beautiful look, if you are looking for a stylishly innovative power headlight, then the FRAME-R1 LED main headlight is an excellent choice.

The integrated LED daytime running light with parking light in TYPE 8 is the perfect way to improve visibility during the day. The correct daytime running light circuit on the vehicle is provided without additional control boxes or switches, complies with regulations and simplifies installation. With an LED cornering light headlight for retrofitting motorcycles, the next evolutionary stage in vehicle lighting is introduced. The HIGHSIDER pro LED headlight with cornering light offers clear advantages over a conventional headlight. The static cornering light activates an additional light when the motorcycle leans. Due to the improved illumination, more of the curve and what is behind it can be seen. The rider can adapt better to the conditions and situations and is safer on the road. Two ellipsoid lenses in combination with powerful LEDs turn night into day and thus combine a strong plus in safety with a polarizingly unique look. The headlight is available with a bottom or side mounting.

Switching from daytime running light to low beam:
Briefly (approx. 1 second) press the high beam/flash button and release it as soon as the low beam is active. Then the low beam is permanently active.

Two different mounting systems are available for variable mounting of the headlight.
- Side Mount, the conventional screw mounting on the side of the lamp holder
- Bottom Mount, mounting at the bottom for screwing onto the triple clamp

The side-mount brackets can be mounted in three positions, thereby compensating for 32mm in installation depth and 46mm in width.

Features:
- Round 7-inch headlight with CNC retaining ring and mounting kit
- Installation WITHOUT a headlight housing
- Improves cooling
- Many installation options
- Flat installation
- Modern look, stylishly innovative
- Tinted glass
- Black reflector
- High beam, low beam, daytime running light, parking light, and cornering light function
- E-approved, no registration required

Give your bike your unmistakable style! The extraordinary design and perfect technology of the HIGHSIDER pro headlight series will definitely make your bike a highlight!

Dimensions:
A Diameter = 200 mm
GA Diameter = 169 mm
I Diameter = 166.5 mm
T = 59 mm
R = 10 mm
Total depth from glass to cooling fins: 99.10 mm

Connections:
Power consumption: 3 pin connector
Red cable = Low beam (+)
White cable = High beam (+)
Black cable = Ground (–)

Separate cable (round connector):
Red cable = LED position light / DRL (+)

Scope of delivery: 1 piece

Note:
This headlight does NOT work in conjunction with the HIGHSIDER pro E-BOX TYPE 1. (Item number: 208-200)
