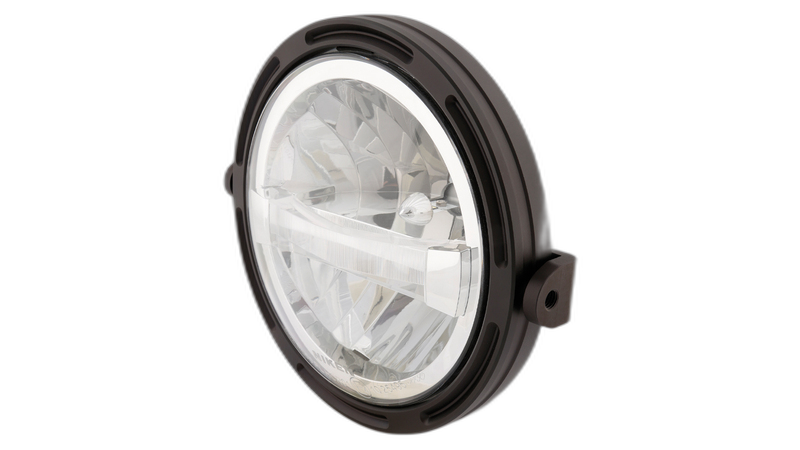

per 7 inch LED headlight FRAME-R1 TYPE 4, black, side mounted

HIGHSIDER pro LED Headlight FRAME-R1 TYPE 4, E-approved
- Installation WITHOUT housing, a light goes on. -

Every millimeter counts to place the headlight as tightly as possible between the two standpipes in the fork. REDUCED TO THE MAX was the premise for the development of the innovative FRAME headlight mount. With the puristic aluminum ring, it is now possible for the first time to mount various LED headlight inserts freestanding on a motorcycle. The deliberate omission of a headlight housing enables an unbeatable tight installation position and additionally achieves better cooling of the LED unit.

On many motorcycles, the H4 or H7 bulb, which glows more or less dimly, is used. Seeing better usually also means being seen better, which is not unimportant when summer turns to autumn and in times when cars are increasingly often equipped with bright daytime running lights. Whether as a replacement for better visibility at night, better visibility during the day, or to give the motorcycle a nicer look, if you are looking for a stylishly innovative power headlight, then the FRAME-R1 LED headlight is an excellent choice.

Two different mounting systems are available for variable attachment of the headlight.
- Side Mount, the conventional screw connection on the side of the lamp holder
- Bottom Mount, attachment at the bottom for screwing onto the triple clamp

The side-mount brackets can be mounted in three positions, compensating for 32mm in installation depth and 46mm in width.

Features:
- Round 7-inch headlight with CNC retaining ring and mounting kit
- Installation WITHOUT a headlight housing
- Improves cooling
- Many installation options
- Flat installation
- Modern look, stylishly innovative
- Clear glass
- Chromed reflector
- High beam, low beam, parking light and daytime running light function
- Daytime running and parking light integrated in a central strip
- Low beam illuminates above the strip, high beam correspondingly below
- Asymmetric light output
- E-approved, nothing needs to be registered

Give your bike its unmistakable style! The extraordinary design and perfect technology of the HIGHSIDER pro headlight series will definitely make your bike a highlight!

Dimensions:
A Diameter = 200 mm
GA Diameter = 168 mm
I Diameter = 160 mm
T = 61 mm
R = 10 mm

Connections:
Black cable = Ground (-)
Blue cable = Low beam (+), Power consumption at 12V: 1.8A, 22W
Yellow cable = High beam (+), Power consumption at 12V: 1.3A, 13W
Black cable = Ground (-)

DRL:
Black cable = Ground (-)
Red cable = Daytime running light (+), Power consumption at 12V: 1.2A, 14W
White cable = Parking light (+), Power consumption at 12V: 0.2A, 2.4W

Scope of delivery: 1 piece

Notes:
Asymmetric use, only approved for right-hand traffic.
The daytime running light can also be used on vehicles without a light switch. For this, for example, the following components are required: Switch: Art. No. 240-044
HIGHSIDER pro DRL CONTROL-BOX CB1: Art. No. 208-108 (switches between low beam and daytime running light)
