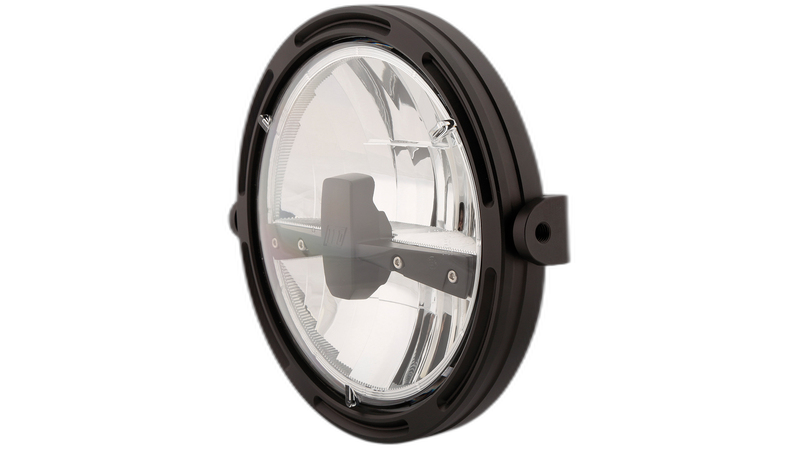

per 7-inch LED Headlight FRAME-R1 TYPE 3, black, side mounted

HIGHSIDER pro LED Headlight FRAME-R1 TYPE 3, E-approved
- Installation WITHOUT housing, let there be light. -

Every inch counts to place the headlight as tightly as possible between the two standpipes in the fork. REDUCED TO THE MAX was the premise during the development of the innovative headlight mount FRAME. With the minimalistic aluminum ring, it is now possible for the first time to mount various LED headlight inserts freestanding on the motorcycle. The deliberate omission of a headlight housing allows for an unbeatably tight installation position and additionally achieves better cooling of the LED unit.

On many motorcycles, the H4 or H7 bulb shines, which more or less flickers. Seeing better usually also means being seen better, which is not unimportant when summer turns to autumn and in times when cars are increasingly equipped with bright daytime running lights. Whether for replacement for better visibility at night, better visibility during the day, or to give the motorcycle a more beautiful look, if you are looking for a stylishly innovative power headlight, then the FRAME-R1 LED headlight is an excellent choice.

Two different mounting systems are available for variable headlight attachment.
- Side Mount, the conventional screw connection on the side of the lamp holder
- Bottom Mount, mounting at the bottom for screwing onto the triple clamp

The side-mount brackets can be mounted in three positions, compensating for 32mm in installation depth and 46mm in width.

Features:
- Round 7 inch headlight with CNC retaining ring and mounting kit
- Installation WITHOUT a headlight housing
- Improves cooling
- Many installation options
- Flat installation
- Modern look, stylishly innovative
- Chrome-plated reflector with black bezel
- High beam, low beam and position light
- Asymmetrical light beam
- E-approved, nothing needs to be registered

Give your bike your unmistakable style! The extravagant design and perfect technology of the HIGHSIDER pro headlight series will definitely make your bike a highlight!

Dimensions:
A Diameter = 200 mm
GA Diameter = 168 mm
I Diameter = 160 mm
T = 61 mm
R = 10 mm

Connections: 3-pin combination plug
Red cable = Low beam (+)
White cable = High beam (+)
Black cable = Ground (-)

Connection of the position light (parking light)
Brown cable = Position light (+)
Black cable = Ground (-)

Scope of delivery: 1 piece

Note:
Asymmetrical insert, approved only for right-hand traffic.
