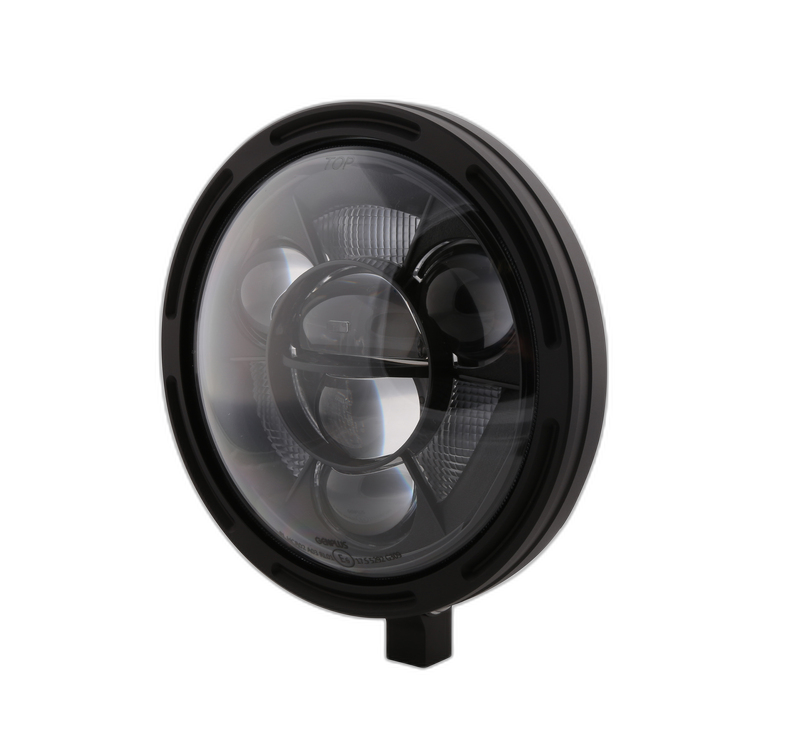

per 7 inch LED headlight FRAME-R1 TYPE 11, black, bottom mount

HIGHSIDER pro FRAME-R1 TYPE 11 LED Headlight 7 inch, E-approved
- Installation WITHOUT housing, a light goes on. -

Every millimeter counts to place the headlight as tightly as possible between the two fork tubes.

REDUCED TO THE MAX was the premise during the development of the innovative headlight mounting FRAME.

With the puristic aluminum ring, it is now possible for the first time to mount various LED headlight inserts freestanding on the motorcycle. By deliberately dispensing with a headlight housing, an unbeatably tight installation position is achieved, and better cooling of the LED unit is also attained.

On many motorcycles, the H4 or H7 lamp provides a more or less dim light. Seeing better usually also means being seen better, which is not unimportant when summer turns into autumn and in times when cars are increasingly equipped with bright daytime running lights.

Whether for replacing for better visibility at night, better recognition during the day, or to give the motorcycle a more beautiful look, if you are looking for a stylishly innovative power headlight, then the FRAME-R1 LED main headlight is an excellent choice. The integrated LED daytime running light in TYPE 11 is the perfect way to improve daytime visibility. The ellipsoidal lenses in combination with powerful LEDs turn night into day, thus combining a strong plus in safety with a polarizing unique look. The headlight is available with a bottom or side mounting.

Two different mounting systems are available for variable attachment of the headlight.
- Side Mount, conventional screwing on the side of the lamp holder
- Bottom Mount, bottom attachment for screwing to the triple clamp

The side-mount brackets can be mounted in three positions, compensating for 32mm in installation depth and 46mm in width.

Features:
- Round 7-inch headlight with CNC mounting ring and mounting kit
- Installation WITHOUT a headlight housing
- Improves cooling
- Many installation options
- Flat installation
- Modern look, stylishly innovative
- Clear glass
- Black reflector
- The reflector emits an asymmetrical luminous flux, approved only for right-hand traffic
- High beam, low beam, parking light and daytime running light function
- E-approved, nothing needs to be registered

Give your bike its unmistakable style! The extravagant design and perfect technology of the HIGHSIDER pro headlight series will definitely make your bike a highlight!

Dimensions:
A Diameter = 170 mm
GA Diameter = 165 mm
I Diameter = 160 mm
T = 60 mm
R = 9 mm
Total depth from glass to cooling fins: 99.10 mm

Connections 3 Pin plug:
Black cable = Ground (–)
White cable = Low beam (+)
Blue cable = High beam (+)

DRL:
Black cable = Ground (–)
Brown cable = Daytime running light (+)
Grey cable = Parking light (+)

Scope of delivery: 1 piece
