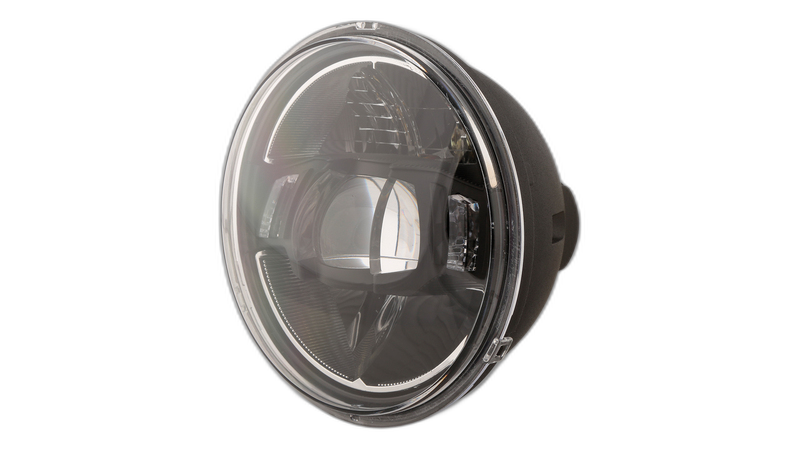

for 5 3/4 inch LED headlight insert TYPE 10, smoke gray reflector, with parking light
HIGHSIDER pro 5 3/4 inch LED Headlight Insert TYPE 10 with parking light, E-approved
Dimensions:
Diameter A = 145 mm
Diameter GA = 132 mm
Diameter I = 125 mm
T = 60 mm
R = 10 mm
Cable length: 210 mm
Weight: 658 g
Connections (3 pin connector):
red = low beam (+)
yellow = high beam (+)
brown = ground (-)
Separate cable:
white = position light
Technische Daten
Kompatibilität
→ Fahrzeug-Finder mit Modell-Suche kommt bald.
Beschreibung
HIGHSIDER pro 5 3/4 inch LED Headlight Insert TYPE 10 with parking light, E-approved
Dimensions:
Diameter A = 145 mm
Diameter GA = 132 mm
Diameter I = 125 mm
T = 60 mm
R = 10 mm
Cable length: 210 mm
Weight: 658 g
Connections (3 pin connector):
red = low beam (+)
yellow = high beam (+)
brown = ground (-)
Separate cable:
white = position light
Power consumption according to manufacturer:
Low beam (+) at 13.5V, 21.7 Watt (approx. 20000 cd)
High beam (+) at 13.5V, 31.8 Watt (approx. 90000 cd)
Position light (+) at 13.5V, 2.2 Watt (approx. 45 cd)
Scope of delivery: 1 piece
