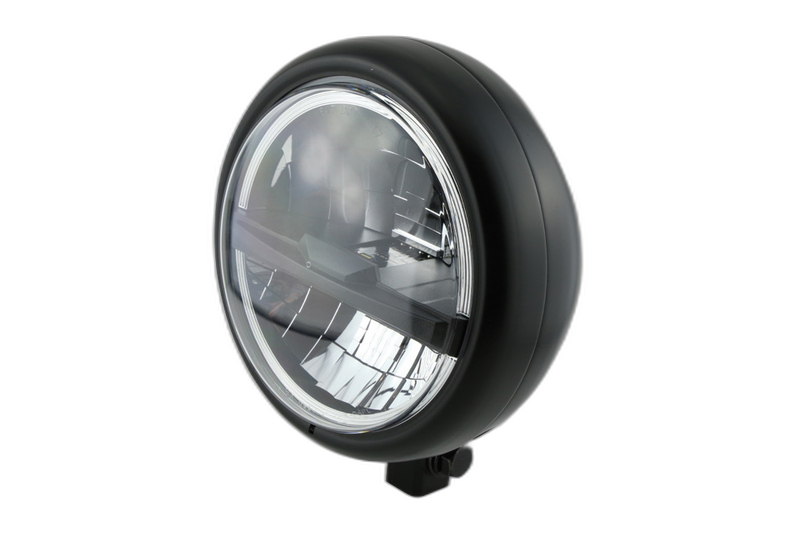

for 5 3/4 inch LED Headlight PECOS TYPE 5, matt black, black lens, bottom mount

HIGHSIDER pro 5 3/4 inch LED Headlight PECOS TYPE 5, E-approved

The robust, puristically shaped main headlight with a matte black metal housing features high beam, low beam, and parking light.
The latest lighting technology and exceptional light design distinguish the PECOS TYPE 5.
A black bar divides the reflector into an upper and lower half.
The low beam illuminates in the upper half of the headlight, and when the high beam is switched on, the lower half also illuminates.
The parking light forms the outer ring around the reflector.
The simple design is ideal for classics, roadsters, and custom bikes.

Eye-catching - give your bike an unmistakable style!
The unusual design and perfect technology of the HIGHSIDER pro headlight series will definitely make your bike a highlight!

Features:
• Bulb: LED
• Lens: clear
• Housing: matte black metal housing
• Reflector: chrome-plated with black bar
• Mounting point: bottom, adjustable, or side of housing

Dimensions:
• Housing-Ø: 165mm
• Inner-Ø of ring: 136mm
• Total depth: 135mm (incl. glass)
• Weight: 1250g
• Mounting height: 36mm (measured to bottom edge of lamp ring)
• Fastening: Screw 25x12mm (thread 24G 3/16 7/32)

Connections

3 Pin Connector:
• Red = Low beam (+)
• White = High beam (+)
• Black = Ground (-)

Separate Cable:
• Brown = Parking light (+)

Power Consumption:
• Low beam 25W at 12V (1121.2lm)
• High beam 21W at 12V (1510.7lm)

Scope of delivery: 1 piece
