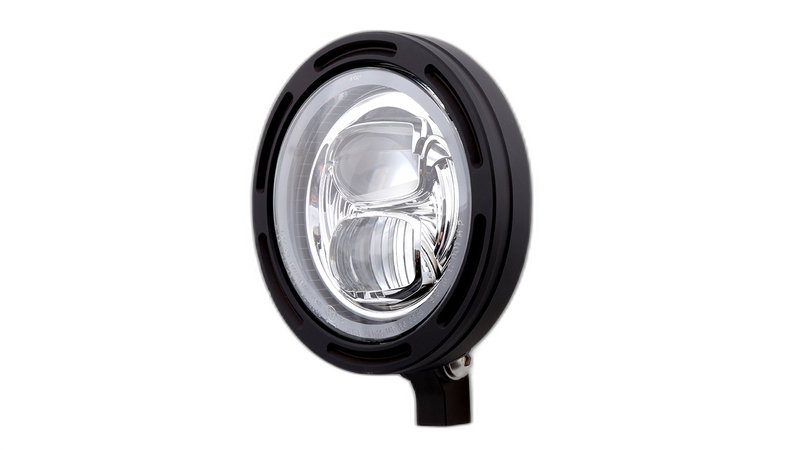

for 5 3/4 inch LED headlight FRAME-R2 TYPE 7, black, bottom mount

HIGHSIDER pro LED main headlight FRAME-R2 TYPE 7, E-approved
- Mounting WITHOUT housing, illuminating the way. -

Every millimeter counts when placing the headlight as close as possible between the two fork stanchions. REDUCED TO THE MAX was the premise during the development of the innovative FRAME headlight mount. With the minimalist aluminum ring, it is now possible for the first time to mount various LED headlight inserts freestanding on a motorcycle. By deliberately omitting a headlight housing, an unrivaled narrow installation position is achieved, and better cooling of the LED unit is also attained.

On many motorcycles, the H4 or H7 bulb, which glows more or less dimly, is not sufficient. Better vision usually also means being better seen, which is not unimportant when summer turns to autumn and in times when cars are increasingly equipped with bright daytime running lights. Whether for replacement for better visibility at night, better recognition during the day, or to give the motorcycle a more attractive look, if you are looking for a stylishly innovative power headlight, then the FRAME-R2 LED main headlight is an excellent choice.

Two different mounting systems are available for variable attachment of the headlight.
- Side Mount, the conventional screw connection on the side of the lamp holder
- Bottom Mount, attachment at the bottom for screwing to the triple clamp

The Side Mount brackets can be mounted in three positions, compensating for 32mm in installation depth and 46mm in width.

Features:
- Round 5 3/4 inch headlight with CNC retaining ring and mounting kit
- Installation WITHOUT a headlight housing
- Improves cooling
- Many installation options
- Flat installation
- Modern look, stylishly innovative
- Black reflector with clear glass
- High beam, low beam (upper half lights up) and parking light ring
- Symmetrical light flux
- E-approved, nothing needs to be registered

Give your bike its unmistakable style! The extraordinary design and perfect technology of the HIGHSIDER pro headlight series will definitely make your bike a highlight!

Dimensions:
A Diameter = 165 mm
GA Diameter = 135 mm
I Diameter = 145 mm
T = 43 mm
R = 27 mm
Side mounting variant: M8

Connections / Power consumption (3-pin connector):
White = Low beam (+) / at 12V, 1.5 A, 15W (1010.6 lm)
Red = High beam (+) / at 12V, 1.8 A, 21.5W (1637.5 lm)
Green = Position light (+) / at 12V, 0.16 A, 1.9W
Black = Ground (-)

Scope of delivery: 1 piece
