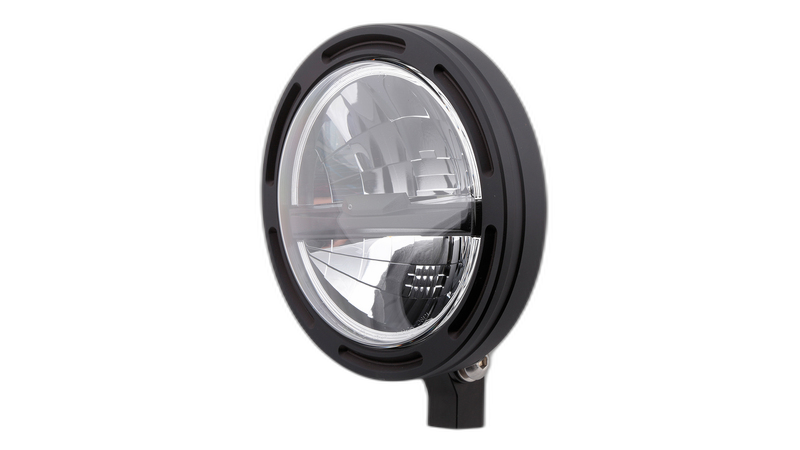

per 5 3/4 inch LED headlight FRAME-R2 TYPE 5, black, bottom mount

HIGHSIDER pro LED Headlight FRAME-R2 TYPE 5, E-approved
- Installation WITHOUT housing, let there be light. -

Every centimeter counts to place the headlight as tightly as possible between the two fork stanchions. REDUCED TO THE MAX was the premise during the development of the innovative headlight mount FRAME. With the puristic aluminum ring, it is now possible for the first time to mount various LED headlight inserts freely on the motorcycle. The deliberate omission of a headlight housing allows for an unbeatable tight installation position and additionally achieves better cooling of the LED unit.

On many motorcycles, the H4 or H7 bulb, which glows more or less dimly. Seeing better usually also means being seen better, which is not unimportant when summer turns to autumn and in times when cars are increasingly equipped with bright daytime running lights. Whether as a replacement for better visibility at night, better visibility during the day, or to give the motorcycle a nicer look, if you are looking for a stylishly innovative power headlight, then the FRAME-R2 LED main headlight is an excellent choice.

Two different mounting systems are available for variable attachment of the headlight.
- Side Mount, the conventional screw connection on the side of the lamp holder
- Bottom Mount, fastening at the bottom for screwing onto the triple clamp

The side mount brackets can be mounted in three positions, thereby compensating for 32mm in installation depth and 46mm in width.

Features:
- Round 5 3/4 inch headlight with CNC retaining ring and mounting kit
- Installation WITHOUT a headlight housing
- Improves cooling
- Many installation options
- Flat installation
- Modern look, stylishly innovative
- Chromed reflector with black cover and clear glass
- High beam, low beam (upper half illuminates) and parking light are generated by extra LEDs at the top and bottom
- Asymmetric light output
- E-approved, nothing needs to be registered

Give your bike your unmistakable style! The unusual design and perfect technology of the HIGHSIDER pro headlight series will definitely make your bike a highlight!

Dimensions:
A Diameter = 165 mm
GA Diameter = 135 mm
I Diameter = 145 mm
T = 60 mm
R = 27 mm
Side mounting version: M8

Connections, power consumption (3 pin connector):
Red cable = Low beam (+), at 12V, 25W (1121.2 lm)
White cable = High beam (+), at 12V, 21W (1510.7 lm)
Brown cable = Parking light (+), at 12V 0.5 Watt
Black cable = Ground (-)

Scope of delivery: 1 piece

Note:
Asymmetric insert, only approved for right-hand traffic.
