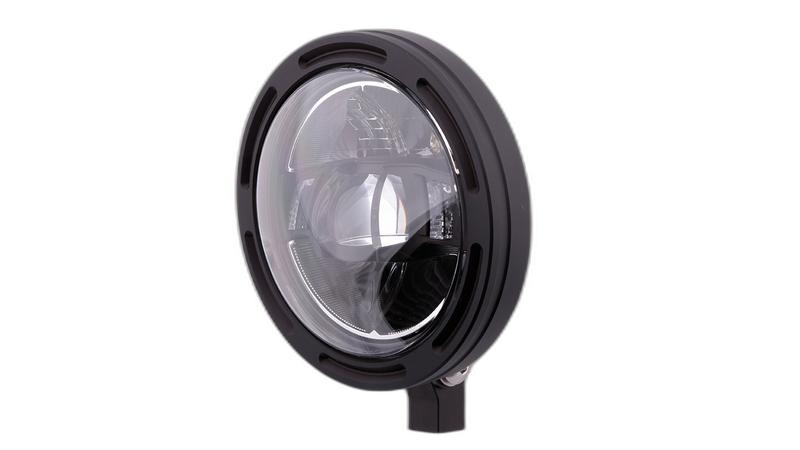

for 5 3/4 inch LED headlamp FRAME-R2 TYPE 10, black, bottom mount

HIGHSIDER pro LED Headlight FRAME-R2 TYPE 10, E-approved
– Installation WITHOUT housing, illuminating the way. –

Every millimeter counts when placing the headlight as close as possible between the two fork tubes. REDUCED TO THE MAX was the premise during the development of the innovative FRAME headlight mount. The puristic aluminum ring makes it possible, for the first time, to mount various LED headlight inserts freestanding on the motorcycle. By deliberately dispensing with a headlight housing, an unbeatable narrow installation position is achieved, and better cooling of the LED unit is also attained.

On many motorcycles, the H4 or H7 bulb illuminates, flickering more or less weakly. Better visibility usually also means being seen better, which is not unimportant as summer turns to autumn and in times when cars are increasingly equipped with bright daytime running lights. Whether for improved night vision, better daytime visibility, or to give the motorcycle a more attractive appearance, if you are looking for a stylishly innovative power headlight, then the FRAME-R2 LED main headlight is an excellent choice.

Two different mounting systems are available for variable headlight attachment.
– Side Mount, the conventional screw connection on the side of the lamp holder
– Bottom Mount, attachment at the bottom for screwing onto the triple clamp

The side-mount brackets can be installed in three positions, compensating for 32 mm in installation depth and 46 mm in width.

Features:
– Round 5 3/4 inch headlight with CNC mounting ring and mounting kit
– Installation WITHOUT a headlight housing
– Improves cooling
– Many installation options
– Flat installation
– Modern look, stylishly innovative
- Dipped beam illuminates at the bottom and in the center
- High beam illuminates at the top
- Parking light is on the left and right
– E-approved, no registration required

Give your bike its unmistakable style! The distinctive design and perfect technology of the HIGHSIDER pro headlight series will definitely make your bike a highlight!

Dimensions:
A Diameter = 165 mm
GA Diameter = 135 mm
I Diameter = 145 mm
T = 60 mm
R = 27 mm
Side mounting variant: M8

Connections / Power consumption (3 pin connector):
Red = Dipped beam (+)
Yellow = High beam (+)
White = Position light (+)
Brown = Ground (-)

Scope of delivery: 1 piece
