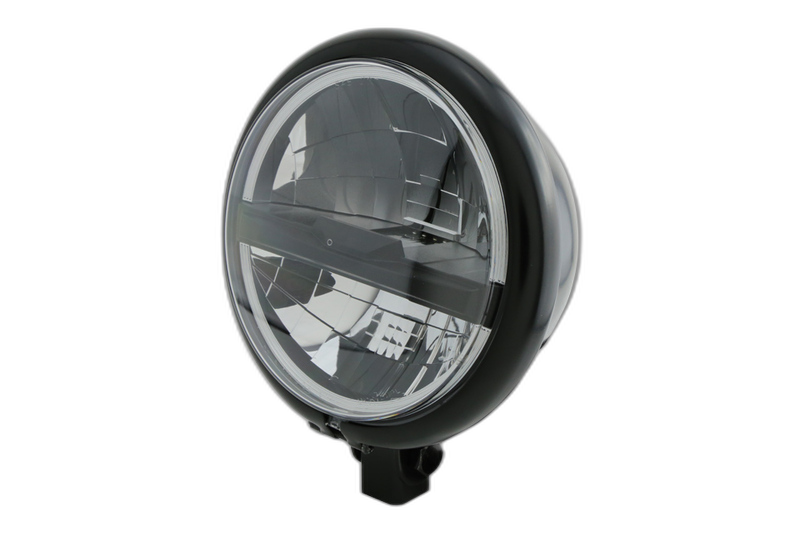

per 5 3/4 inch LED headlight BATES STYLE TYPE 5, black, bottom mount
HIGHSIDER pro 5 3/4 inch LED Headlight BATES STYLE TYPE 5, E-approved
Stylish LED headlight with a black metal housing in BATES STYLE design. The round, chrome-plated reflector with black bezel and clear glass features high beam, low beam, and parking light functions.
The low beam illuminates the upper half, and when the high beam is switched on, both halves of…
Technische Daten
Kompatibilität
→ Fahrzeug-Finder mit Modell-Suche kommt bald.
Beschreibung
HIGHSIDER pro 5 3/4 inch LED Headlight BATES STYLE TYPE 5, E-approved
Stylish LED headlight with a black metal housing in BATES STYLE design. The round, chrome-plated reflector with black bezel and clear glass features high beam, low beam, and parking light functions.
The low beam illuminates the upper half, and when the high beam is switched on, both halves of the headlight illuminate.
The tested headlight is also robust and easy to install.
Our highlights – give your bike an unmistakable style! The extraordinary design and perfect technology of the HIGHSIDER pro headlight series make it a highlight in every case!
Dimensions:
Diameter front: approx. 155 mm
Depth: 90 mm, with ring approx. 92 mm
Blind hole diameter: 8.8 mm
Blind hole depth: 10 mm
Screw: 9.4 x 20 mm
Thread: 24G 3/16, 7/32
Height mounting lug to ring: approx. 27 mm
Height mounting lug: approx. 30 mm
Width/depth mounting lug: approx. 22 mm
Mounting height with lug, center/center: approx. 39 mm
Mounting: bottom
Connections:
(3 pin connector)
red = low beam (+)
white = high beam (+)
black = ground (-)
brown = parking light (+)
black = ground (-)
Scope of delivery: 1 piece
