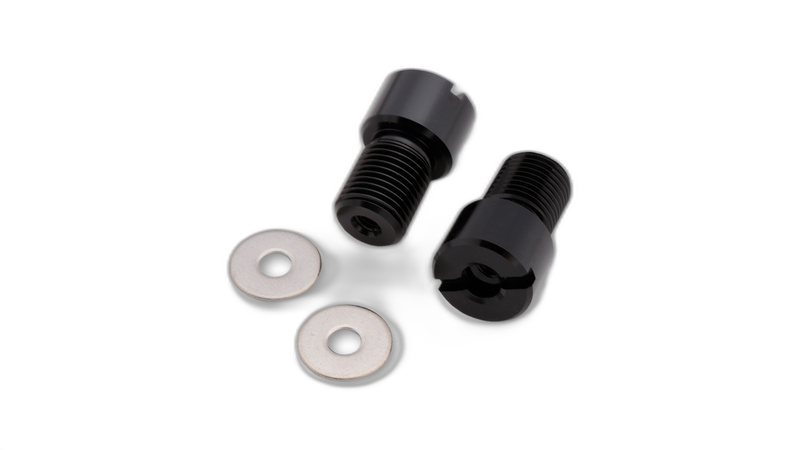

M16 Handlebar Adapters for various Yamaha Models Pair

HIGHSIDER M16 mounting kit for various Yamaha motorcycles

This special mounting kit allows the installation of the popular HIGHSIDER bar ends, bar end mirrors or lever guards on the original handlebars of Yamaha motorcycles.

The M16 x 1.5 threaded sleeves with M6 internal thread are screwed into the existing thread in the handlebar using a suitable flat-head screwdriver.
The HIGHSIDER handlebar accessories with M6 central screw can then be mounted on the Yamaha handlebars.
If required, the washers included in the set can be used to create a sufficiently large distance between the handlebar and the attachment part.

Dimensions:
Adapter thread:
Outer: M16 x 1.5
Thread length: 17 mm

Adapter:
Total diameter: 20.9 mm
Length: 35 mm
Inner: M6

Washer:
Outer diameter: 19 mm
Inner diameter: 8.5 mm

Scope of delivery:
2 x adapters
2 x washers
