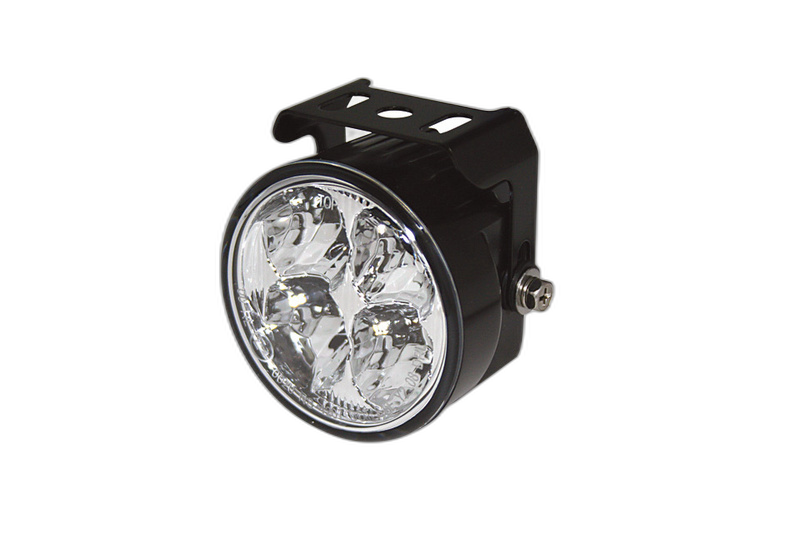

LED Daytime Running Lights, Round

HIGHSIDER LED daytime running light, E-approved
The LED daytime running light with 4 LEDs is built into a round, black-painted aluminum housing. The powerful LEDs significantly increase the visibility of motorcyclists to other road users.

See and be seen – give your bike personality! The extraordinary design and perfect technology of the HIGHSIDER headlight series will definitely make you an eye-catching highlight!

Dimensions:
Diameter: 71.5 mm
Depth: 47.5 mm

Technical data:
Current consumption at 12.5 volts: only 0.2 amps (approx. 2.5 watts)
Luminous flux at 12 volts: 150 lumens

Connections:
Black cable: Ground (-)
Red cable = Plus (+), connected to switched plus (ignition).
White cable = Control line to parking light

Scope of delivery: 1 piece

NOTE 1 – WITH existing light switch:
A manually switched low beam (light switch) is required for the daytime running light (DRL) to function, otherwise the DRL function would be canceled.
According to the road traffic regulations, the DRL must be connected in such a way that it switches off when the main headlight is switched on.
(Exception: operating the headlight flasher). The rear tail light must always remain switched on, i.e. connected to ignition plus.

NOTE 2 – WITHOUT existing light switch:
The daytime running light can also be used on vehicles without a light switch. For this, for example, the following components are required:
Switch: Art. No. 240-044
HIGHSIDER DRL CONTROL- BOX CB1: Art. No. 208-108 (switches between low beam and daytime running light)
