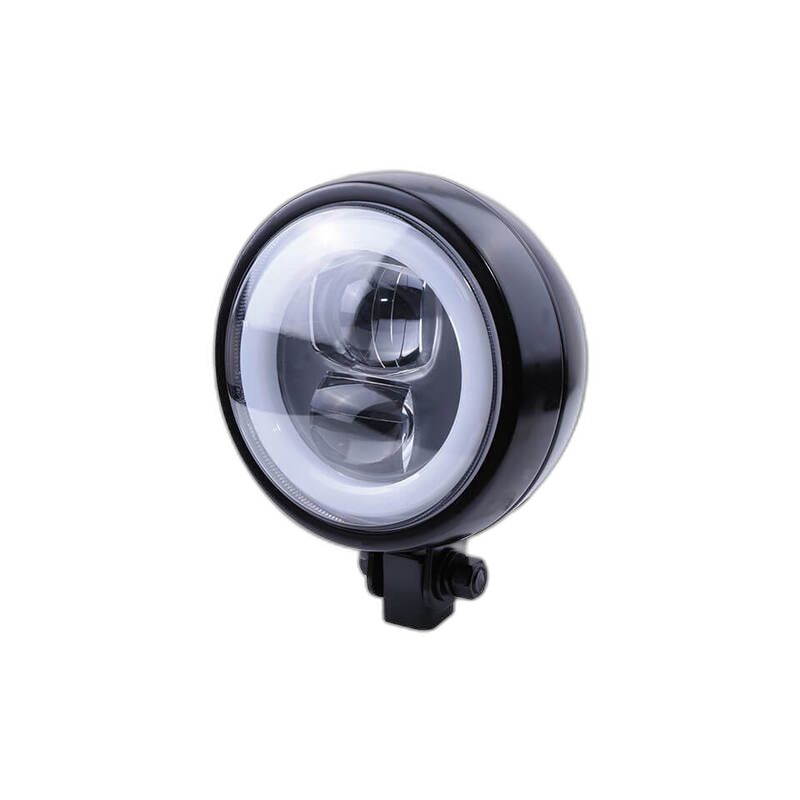

LED Headlight Flat Type 9 with Parking Light Ring
HIGHSIDER 4 3/4 inch LED Headlight FLAT TYPE 9 with parking light ring, E-approved
With its compact 4 3/4 inch size, the LED headlight FLAT TYPE 9 looks great on your bike. Small yet robust. Powerful LED technology solidly packaged in a steel housing with a round shape and flat back. Approved headlight with high beam, low beam, and parking…
Technische Daten
Kompatibilität
→ Fahrzeug-Finder mit Modell-Suche kommt bald.
Beschreibung
HIGHSIDER 4 3/4 inch LED Headlight FLAT TYPE 9 with parking light ring, E-approved
With its compact 4 3/4 inch size, the LED headlight FLAT TYPE 9 looks great on your bike. Small yet robust. Powerful LED technology solidly packaged in a steel housing with a round shape and flat back. Approved headlight with high beam, low beam, and parking light function. The low beam is at the bottom and the high beam at the top. The LED parking light is ring-shaped and encloses the reflector, forming a halo. The FLAT TYPE 9 is available with either bottom or side mounting points and in various colors.
Dimensions:
Housing diameter: 138 mm
Insert diameter: 120 mm
Housing depth: 95 mm
Mounting: Side variant M8 thread, L:16 mm or bottom variant M10 screw, L:25 mm
Weight: 0.992 kg
Connections:
Power consumption: 3 pin connector
Red = high beam (+)
White = low beam (+)
Green = position light (+)
Black = ground (-)
Scope of delivery: 1 piece
