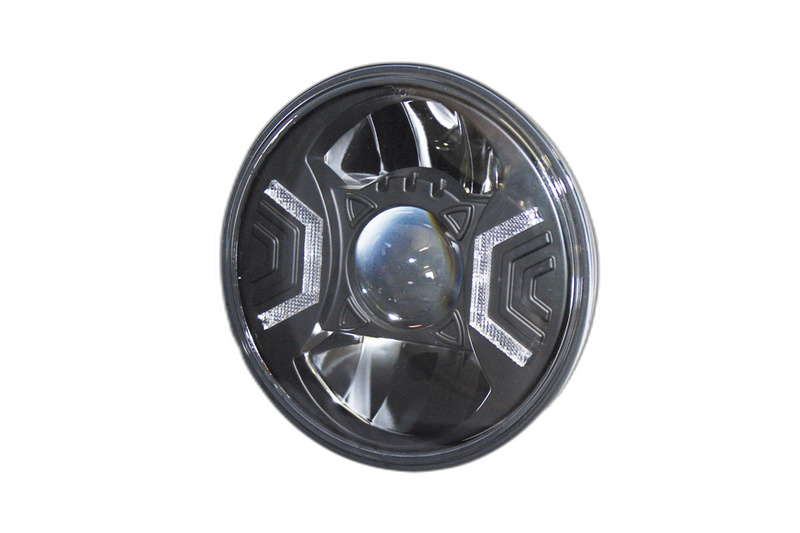

LED Headlight Insert Type 2, 7 inch, black

HIGHSIDER 7-inch LED Headlight Insert TYPE 2

This round, black or chrome reflector features high beam, low beam, and parking light functions and emits an asymmetrical light stream – approved only for right-hand traffic – E-approved.

See and be seen – give your bike an unmistakable style!
The exceptional design and perfect technology of the HIGHSIDER headlight series make it a highlight in every respect!

Dimensions:
Diameter A = 176 mm
Diameter GA = 165 mm
Diameter I = 160 mm
Diameter Heat Sink K = 99 mm
T = 81 mm
R = 8 mm

Technical specifications:
Current consumption at 12.5 Volt DC:
Low beam: approx. 1.6 Ampere (20 Watt).
12 Volt 1450 Lumen
Only the upper reflector and the central ellipsoidal insert illuminate.

High beam: approx. 1.6 Ampere (20 Watt).
12 Volt 1582 Lumen
Only the upper and lower reflectors illuminate. When the flash-to-pass is activated, the central ellipsoidal insert turns off.

Connections:
The following 3 cables terminate in a combination plug:
Black = Ground (-)
Red = High Beam Plus (+).
Blue = Low Beam Plus (+).
Additionally 2 cables for parking light:
Black = Ground (-)
Red = Parking light (+)
White = Connection for indicator light (can be used optionally)

Scope of delivery: 1 piece

Notes:
Asymmetrical insert, approved only for right-hand traffic.
The reflector is also available complete with a black housing:
Item No. 223-184 and 223-131.
