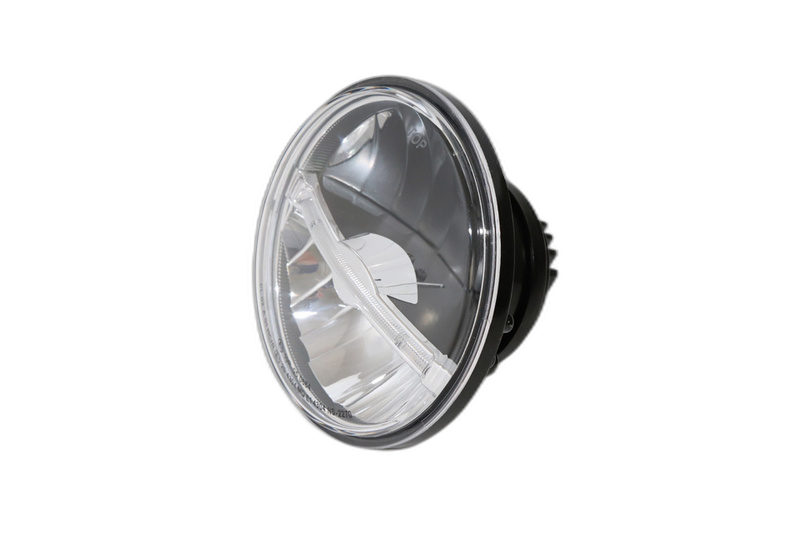

Jackson 5 3/4 Inch LED Headlight Insert
HIGHSIDER LED Headlight Insert JACKSON, 5 3/4 inch
This round, chrome-plated reflector features high beam, low beam, and parking light, as well as clear glass. The parking light function is displayed in the center of the insert as a light bar (Light Guide System). The reflector emits an asymmetrical luminous flux – approved only for right-hand traffic – E-approved.
Eye-catching…
Technische Daten
Kompatibilität
→ Fahrzeug-Finder mit Modell-Suche kommt bald.
Beschreibung
HIGHSIDER LED Headlight Insert JACKSON, 5 3/4 inch
This round, chrome-plated reflector features high beam, low beam, and parking light, as well as clear glass. The parking light function is displayed in the center of the insert as a light bar (Light Guide System). The reflector emits an asymmetrical luminous flux – approved only for right-hand traffic – E-approved.
Eye-catching – give your bike its unmistakable style! The distinctive design and perfect technology of the HIGHSIDER headlight series will definitely make your bike a highlight!
Dimensions
Diameter A = 148 mm
Diameter GA = 134 mm
Diameter I = 128 mm
T = 60 mm
R = 11 mm
Technical specifications
Voltage: 12 V
Connections with triple plug
Black = Ground (-)
Blue = Low beam (+)
Red = High beam (+)
Separate cables:
Red = Parking light (+)
Black = Ground (-)
Scope of delivery: 1 piece
Optionally available:
Complete headlight:
5 3/4 inch LED main headlight JACKSON, black and chrome: Art. No. 223-028 and 223-029
5 3/4 inch main headlight #223-014, 223-015
Plug for H4 bulbs, with 210 mm cable #396-042
Does not fit into the BATES STYLE headlight, 5 3/4 inch (#222-018, -019)
