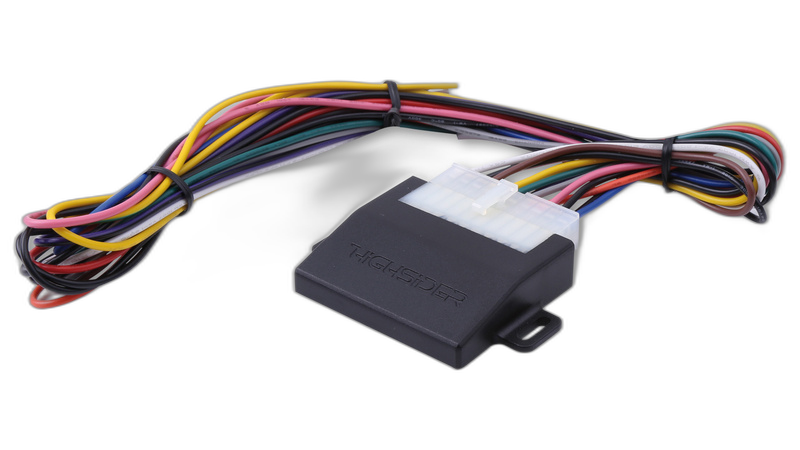

E-Box DRL Touch, for DRL circuit via push button
HIGHSIDER E-BOX DRL TOUCH, for DRL switching via button, 20-pin.
For switching between daytime running light and low beam.
The HIGHSIDER E-BOX DRL TOUCH can switch the low beam on or off with the help of a push button (not included in the scope of delivery).
Dimensions:
Height: 16 mm
Width: 56.5 mm
Width with mounting tabs: 75 mm
Length:…
Technical specs
Compatibility
→ Vehicle finder with model search coming soon.
Description
HIGHSIDER E-BOX DRL TOUCH, for DRL switching via button, 20-pin.
For switching between daytime running light and low beam.
The HIGHSIDER E-BOX DRL TOUCH can switch the low beam on or off with the help of a push button (not included in the scope of delivery).
Dimensions:
Height: 16 mm
Width: 56.5 mm
Width with mounting tabs: 75 mm
Length: 48 mm
Mounting tabs: 3 mm x 11 mm (slotted hole)
Weight: 0.046 kg
Cable length: 400 mm
Scope of delivery:
1 x HIGHSIDER E-BOX DRL TOUCH
1 x Cable set
1 x Capacitor
1 x Instructions
