Dual-Stream Headlights
HIGHSIDER DUAL-STREAM LED headlight, black, E-approved
The small all-in-one ellipsoid headlight with a round lens is a powerful LED main headlight in a black housing and a robust bracket. The special feature of the HIGHSIDER DUAL-STREAM is the parking light ring around the ellipsoid lens and the shutter technology, where a mechanical aperture switches between high beam and low beam.…
Technical specs
Compatibility
→ Vehicle finder with model search coming soon.
Description

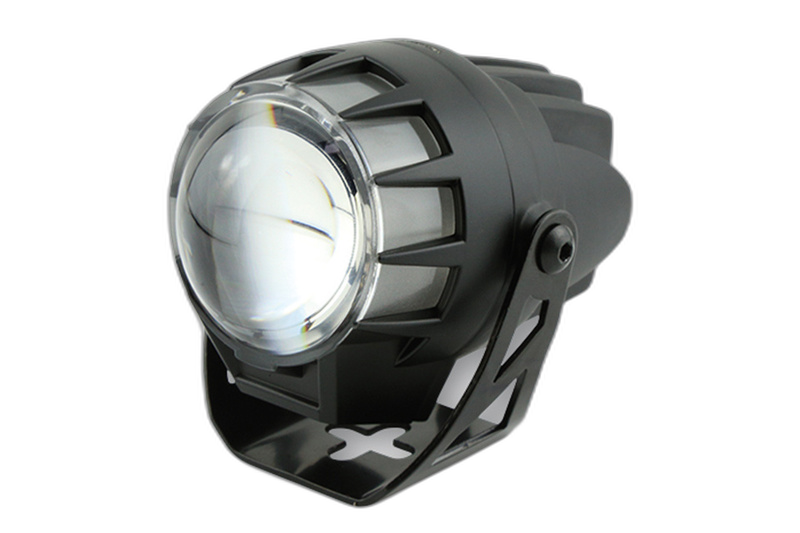

HIGHSIDER DUAL-STREAM LED headlight, black, E-approved
The small all-in-one ellipsoid headlight with a round lens is a powerful LED main headlight in a black housing and a robust bracket. The special feature of the HIGHSIDER DUAL-STREAM is the parking light ring around the ellipsoid lens and the shutter technology, where a mechanical aperture switches between high beam and low beam. By using this modern LED technology, minimal housing dimensions can be achieved with maximum light output.
Our highlights – give your bike an unmistakable style! The unusual design and perfect technology of the HIGHSIDER headlight series make it a highlight in every case!
Dimensions:
Lens diameter: approx. 45 mm
Height: 70.2 mm
Width: 67 mm
Depth: 96.5 mm
Distance between mounting holes: 67 mm
Side mounting holes: M 5 mm
Housing material: Aluminium
Weight: 0.230 kg
Power consumption:
12V / 12W, 739.3 lm, low beam
12V / 19 W, 739.3 lm, high beam
Connections:
Position light = brown
Low beam = white
The white cable is connected to ignition plus (+)
High beam = blue
Ground = Green (-)
