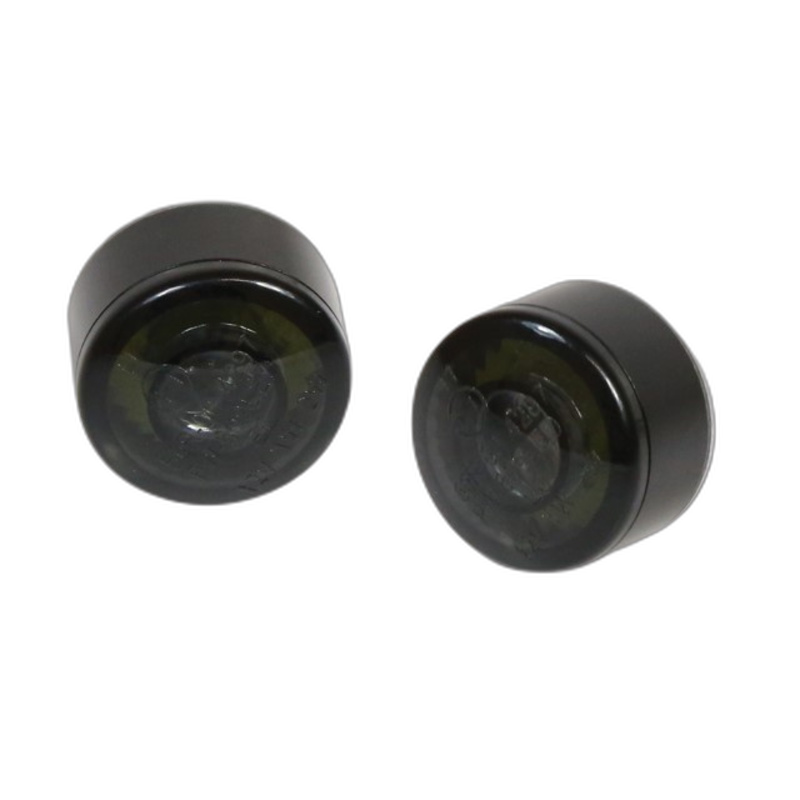

Apollo Module 2-in-1 LED Turn Signals/Position Lights

HIGHSIDER APOLLO MODUL 2in1 LED turn signal/position light, E-approved for front

LED turn signal/position light module suitable for recessed or surface mounting, black aluminum ring with tinted glass. This innovative lighting technology features 2 very bright SMD LEDs in the center, enabling an extremely compact design. The outer ring, on the other hand, consists of new COB technology (Chip On Board). The new LED chip embedding for high-power LEDs achieves very high luminance with the best possible efficiency and lifespan currently available. This also allows for higher light values than with conventional LEDs. This module comes with a black anodized aluminum ring that fits over the main body.

In the right direction – with HIGHSIDER's innovative turn signal series. Don't just show where you want to go, but also who you are. This is trend-setting design at its finest.

Mounting position: Front

Dimensions:
A1: 13 mm
A2: 9 mm
D1: 22 mm
D2: 20 mm
Threaded bolt M8, length: 12 mm

Connections:
Black cable = Ground (-)
Yellow cable = Turn signal (+)
White cable: Position light (+)

Scope of delivery: 1 pair

Note:
The unit can be flush-mounted without the aluminum ring, so that only the lens is visible. A 20 mm hole must be drilled for this.
Alternatively, the unit can be mounted with the aluminum ring on, for example, a mounting plate on the vehicle, see instructions.
