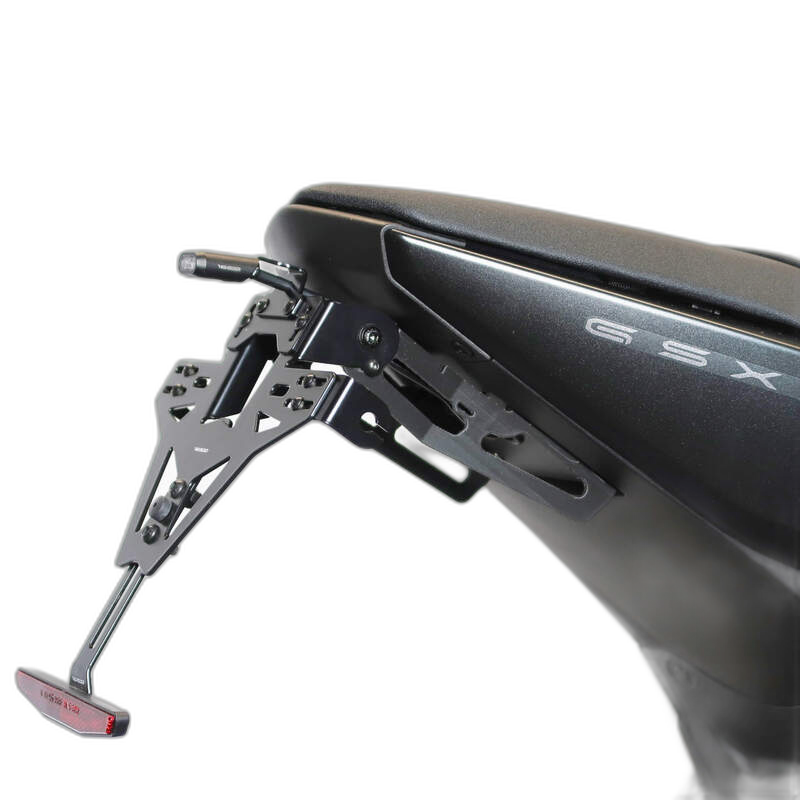

Akron-RS Pro License Plate Holder

Adjustable license plate holder for SUZUKI GSX 8S 23-, incl. tail light & adapter cable (E-approved)

The AKRON-RS PRO-X license plate holder adapts perfectly to the lines of your bike thanks to its design.

The model-specific bracket of the AKRON-RS PRO-X allows mounting to the original mounting points of your bike, thus enabling replacement without further drilling or cutting.
To prevent damage to cables, all sharp-edged feed-throughs are protected by a rubber grommet.

The license plate is made of 2 mm thick sheet steel and precisely laser-cut. After bending, it is finished with a weather-resistant black powder coating.
This ensures optimal fit and durability.
Thanks to the continuously adjustable feature, you can position the plate as desired without drilling. The plate is held in this position by an additional locking screw.

The indicator brackets of the AKRON-RS PRO-X are adjustable in width and therefore suitable for all types of accessory indicators. This adjustability allows you to adapt the position of your indicators to different license plates. To enable indicator mounting without disconnecting from the wiring harness, the M8 through-holes are slotted to the side.

You can also individually adjust the position of the reflector using a slider. This makes adapting to different EU license plate versions no problem.

Two rubber washers are included to securely screw on the license plate and reduce vibrations. Another rubber buffer supports the license plate at its underside.

This PRO-X version of the AKRON-RS includes the very small, high-quality aluminum-milled HIGHSIDER tail light with mounting plate and support arm. The bracket is adjustable in height and designed to allow mounting in the legally prescribed position.

Details:
• Model-specific bracket
• Continuously adjustable indicator brackets
• Slotted indicator mount for easy installation
• Continuously adjustable reflector, E-approved
• Suitable for European license plates
• Continuously adjustable tilt angle
• Additional screw for optimal position security
• Easy fixation without further work steps (e.g. drilling)
• Easy mounting of the license plate through elongated holes
• Tail light incl. bracket included
• Tail light, E-approved
• Continuously adjustable license plate illumination
• Many different options for mounting the tail light
• Adapter cable for tail light

The AKRON-RS PRO-X scope of delivery includes:
• Model-specific bracket with mounting parts
• AKRON-RS license plate holder
• Adjustable indicator brackets
• E-approved reflector with adjustable holder
• E-approved tail light
• Installation instructions

Tail light wiring:
• White = License plate light
• Black = Ground
• Red = Brake light
• White = Tail light
• Black = Ground

Notes:
• Since the original tail light of your motorcycle is removed when installing this license plate holder, we offer this set including a new tail light.
• If your original license plate holder has side reflectors installed, these must be reattached in a suitable position or replaced with new ones.
• For the original indicators, we also offer a special indicator bracket as an option in the accessories tab.
